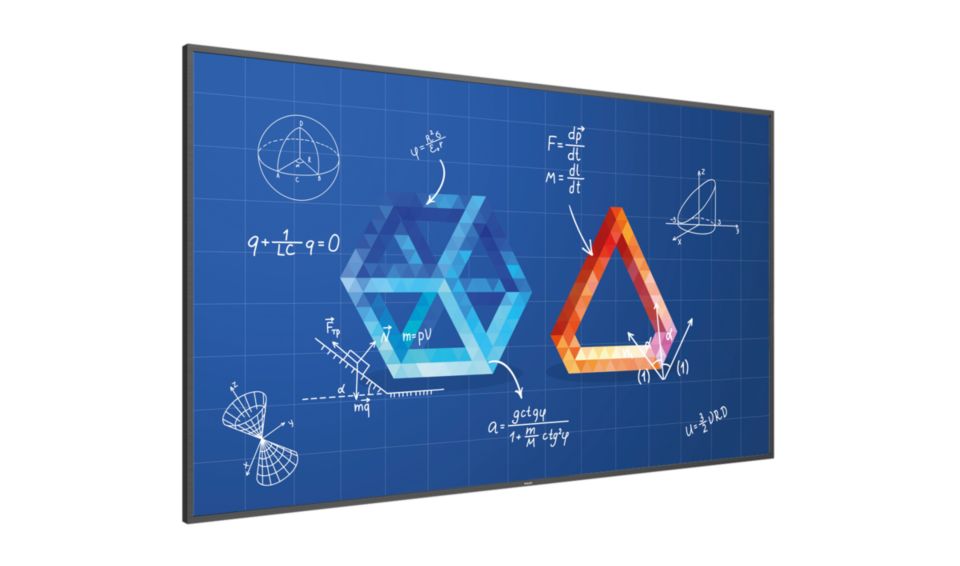

Signage Solutions Multi-Touch Display

65BDL3552T/00

Signage Solutions Multi-Touch Display

65BDL3552T/00

Interactive classroom display

Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring an anti-glare toughened glass, these Android powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints

Unfortunately this product is no longer available

Signage Solutions Multi-Touch Display

Interactive classroom display

Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring an anti-glare toughened glass, these Android powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints

Interactive classroom display

Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring an anti-glare toughened glass, these Android powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints

Unfortunately this product is no longer available

Signage Solutions Multi-Touch Display

Interactive classroom display

Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring an anti-glare toughened glass, these Android powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints

Interactive classroom display

Featuring multi-touch technology

  • 65"
  • Powered by Android
  • Multi-touch
OPS slot allows for PC embedding without cabling

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

Multi-touch technology capable of 20 touchpoints

Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.

Whiteboard mode built-in

Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be captured for easy printing or file sharing.

Wireless screen sharing & advanced collaboration

Display four feeds on the one screen. Wireless screen sharing allows you to connect multiple devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI interact dongles to cast directly to the screen without needing to connect to your secured/protected network.

Android: Run your own app or choose your favorite app to run

WIth Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.

Technical Specifications

  • Connectivity

    Audio output
    3.5mm Jack (x2)
    Video input
    • Display Port1.2 (x1)
    • DVI-I (x 1)
    • HDMI 2.0 (x4)
    • USB 2.0 (x2)
    • USB 3.0 (x2)
    • USB-C
    • HDMI 2.0 (x2)
    Audio input
    3.5mm Jack (x1)
    Other connections
    • micro SD
    • OPS
    Video output
    • DisplayPort 1.2 (x1)
    • DVI - D (x1)
    • HDMI 2.0 (x1)
    • USB 2.0 (x2)
    External control
    • RJ45
    • IR (in/out) 3.5 mm jack
    • RS232C (in/out) 2.5 mm jack
  • Picture/Display

    Diagonal screen size (metric)
    163.9  cm
    Diagonal screen size (inch)
    64.5  inch
    Aspect ratio
    16:9
    Panel resolution
    3840 x 2160
    Pixel pitch
    0.372 x 0.372 mm
    Optimum resolution
    3840 x 2160 @ 60 Hz
    Brightness
    420  cd/m²
    Display colors
    1.07 Billion
    Contrast ratio (typical)
    1300:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    9  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Picture enhancement
    • 3/2 - 2/2 motion pull down
    • 3D Combfilter
    • Motion compens. deinterlacing
    • Progressive scan
    • 3D MA deinterlacing
    • Dynamic contrast enhancement
    Surface treatment
    Anti-Glare coating
    Panel technology
    IPS
    Operating system
    Android 9
  • Convenience

    Placement
    • Landscape (18/7)
    • Portrait (12/7)
    Screen saving functions
    Pixel Shift, Low Brightness
    Keyboard control
    • Hidden
    • Lockable
    Remote control signal
    Lockable
    Signal loop through
    • IR Loopthrough
    • DisplayPort
    • RS232
    Ease of installation
    Smart Insert
    Energy saving functions
    Smart Power
    Other convenience
    Carrying handles
    Picture performance
    Advanced color control
    Network controllable
    • RS232
    • RJ45
  • Sound

    Built-in speakers
    2 x 20W RMS
  • Power

    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (Typical)
    175  W
    Consumption (Max)
    350 W
    Standby power consumption
    <0.5W
    Power Saving Features
    Smart Power
    Energy Label Class
    G
  • Supported Display Resolution

    Computer formats
    • 1024x768, 60,70Hz
    • 1152 x 864, 60, 70, 75Hz
    • 1152 x 900, 66Hz
    • 1280 x 720, 60,70Hz
    • 1280 x 768, 60Hz, 75Hz
    • 1280 x 800, 60,75Hz
    • 1280 x 960, 60Hz
    • 1280x1024, 60,67,75Hz
    • 1360 x 768, 60Hz
    • 1366 x 768, 60Hz
    • 1400 x 1050 ,60, 75Hz
    • 1440 x 1050, 60Hz
    • 1440 x 900, 60, 75Hz
    • 1600 x 1200, 60Hz
    • 1600 x 900, 60Hz
    • 1680 x 1050, 60Hz
    • 1920 x 1080, 60Hz
    • 1920 x 1200, 60Hz
    • 3840 x 2160, 24,25,30,60Hz
    • 640 x 350, 70Hz
    • 640 x 480, 60, 67, 72, 75Hz
    • 800 x 600, 56, 60, 72, 75Hz
    • 832 x 624, 75Hz
    • 848 x 480, 60Hz
    • 960x720, 75Hz
    Video formats
    • 1080i, 50, 60Hz
    • 1080p, 50, 60Hz
    • 480p, 60Hz
    • 4K x 2K
    • 576p, 50Hz
    • 720p, 50, 60Hz
    • 720p, 60Hz
  • Dimensions

    Smart Insert mount
    100mm x 100mm, 6xM4L6
    Set Width
    1494.30  mm
    Product weight
    43.6  kg
    Set Height
    869.40  mm
    Set Depth
    80.2mm(D@wall mount) / 106.8mm (D@speaker cover)  mm
    Set Width (inch)
    58.83  inch
    Set Height (inch)
    34.23  inch
    Wall Mount
    400(H)x400(V), M8
    Set Depth (inch)
    3.16(D@wall mount) / 4.20 (D@speaker cover)  inch
    Bezel width
    16.30 mm(even)
    Product weight (lb)
    96.12  lb
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    50,000  hour(s)
    Relative humidity
    20 ~ 80%(Operational),5 - 95%(Storage)  %
    Temperature range (storage)
    -20 ~ 60  °C
  • Multimedia Applications

    USB Playback Video
    • ASF
    • AVI
    • DAT
    • FLV
    • MKV
    • MP4
    • MPEG
    • MPG
    • TS
    • VOB
    • WEBM
    • WMV
    USB Playback Picture
    • BMP
    • JPEG
    • JPG
    • PNG
    USB Playback Audio
    • AAC
    • M4A
    • MP3
    • WMA
  • Internal Player

    CPU
    MTK5680
    GPU
    DDR4 4GB
    Memory
    4GB RAM
    Storage
    32 GB eMMc
    Wifi
    • AP(WC0SR2511-88112BU)
    • STA(WCT5GM2511MT7668AU)
  • Accessories

    Included accessories
    • AC Power Cord
    • RS232 cable
    • Remote Control
    • Batteries for remote control
    • Quick start guide
    • HDMI cable
    • IR sensor cable (1.8M)
    Included Accessories
    • RS232 daisy-chain cable
    • Cleaning cloth (x1)
    • DVI-D cable (1.8m )
    • M2 Screw (x2)
    • M3 screw (x2)
    • Philips logo (x1)
    • Touch Pen (x2)
    • Touch USB (x1)
    • USB Cover (x1)
    Optional accessories
    Cast to dongle
  • Miscellaneous

    On-Screen Display Languages
    • Arabic
    • English
    • French
    • German
    • Italian
    • Japanese
    • Polish
    • Spanish
    • Turkish
    • Russian
    • Simplified Chinese
    • Traditional Chinese
    • Danish
    • Dutch
    • Finnish
    • Norwegian
    • Portuguese
    • Swedish
    Warranty
    3 year warranty
    Regulatory approvals
    • BSMI
    • CB
    • CE
    • EMF
    • ETL
    • FCC, Class A
    • PSB
    • RoHS
    • EAC
  • Interactivity

    Multi-touch technology
    Advanced infrared touch
    Touch points
    20 simultaneous touch points
    Plug and play
    HID compliant
    Protection glass
    • Tempered safety glass
    • Anti-Glare

What's in the box?

Other items in the box

  • AC Power Cord
  • RS232 cable
  • Remote Control
  • Batteries for remote control
  • Quick start guide
  • HDMI cable
  • IR sensor cable (1.8M)
  • Optional accessories: Cast to dongle
