Signage Solutions S-Line Display
37BDL3050S/00
- -{discount-value}

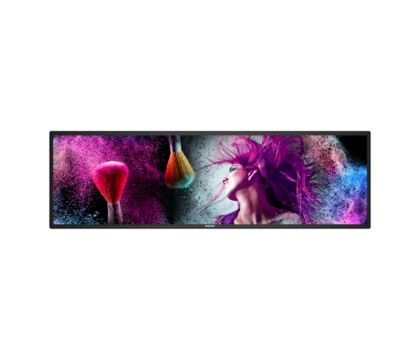

Signage Solutions S-Line Display
37BDL3050S/00Go wide
Widen the view. Widen your opportunities with Philips S-Line. With its unique 32:9 design and 1920x540 resolution, high-brightness output and versatile linking, the new stretched digital signage display shows more in less space.
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Signage Solutions S-Line Display
Go wide
Widen the view. Widen your opportunities with Philips S-Line. With its unique 32:9 design and 1920x540 resolution, high-brightness output and versatile linking, the new stretched digital signage display shows more in less space.
Go wide
Widen the view. Widen your opportunities with Philips S-Line. With its unique 32:9 design and 1920x540 resolution, high-brightness output and versatile linking, the new stretched digital signage display shows more in less space.
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Signage Solutions S-Line Display
Go wide
Widen the view. Widen your opportunities with Philips S-Line. With its unique 32:9 design and 1920x540 resolution, high-brightness output and versatile linking, the new stretched digital signage display shows more in less space.
Similar products
See all S-Line series
Operate, monitor and maintain with CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
Android: Run your own app or choose your favorite app to run
Control your display via an Internet connection. Android-powered Philips Professional Displays are optimized for native Android apps, and you can install web apps directly to the display too. A new Android 8 ensures the software is kept secure and remain to the latest specification for longer.
Designed for 24/7 operation for highest accuracy
Because business never sleeps, our signage displays are designed for 24/7 use for highest accuracy and critical environments. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability.
High brightness for clearer images
Make a big impact in bright or semi-outdoor locations. This ultra-high-brightness 700 cd/ m2 display is perfect for attracting attention in large, busy areas that are subject to high ambient light.
Integrated media player. Easily schedule USB content
Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.
Simple and powerful daisy chaining for multi-display setup
Link multiple displays with HDMI Daisy chain. Simply connect the HDMI Out port to a HDMI In of another display to create the most stunning experience around.
Tiling mode. Create tiled set up of your choice
Connect two or more Philips professional displays to create a tiled set up with only one external device. A single player takes care of your custom content, no matter the number of displays.
Technical Specifications
-
Picture/Display
- Diagonal screen size (inch)
- 37 inch
- Panel resolution
- 1920 x 540
- Optimum resolution
- 1920 x 540 @ 60 Hz
- Brightness
- 700 cd/m²
- Response time (typical)
- 8 ms
- Aspect ratio
- 32:9
- Viewing angle (horizontal)
- 178 degree
- Viewing angle (vertical)
- 178 degree
- Pixel pitch
- 0.47 x 0.47 mm
- Display colors
- Normally Black
- Picture enhancement
-
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- De-interlacer
- Progressive scan
- 3D MA deinterlacing
- Smart Picture
- Color Temperature Adjustment
- Color Enhancement
- Noise Reduction
-
- Panel technology
- AG
- Contrast ratio (typical)
- 4000:1
- Operating system
- Android 8.0
- Placement
-
- Landscape (24/7)
- Portrait (24/7)
-
-
Supported Display Resolution
- Computer formats
-
- 640 x 480, 60,67,75Hz
- 720 x 400, 70Hz
- 800 x 600, 60Hz
- 832 x 624, 75Hz
- 1024 x 768, 60Hz
- 1152 x 870, 75Hz
- 1280 x 720, 60Hz
- 1280 x 1024, 60Hz
- 1440 x 900, 60Hz
- 1680 x 1050, 60Hz
- 1920 x 1080, 60Hz
-
- Video formats
-
- 480i, 60Hz
- 480p, 60Hz
- 576p, 50Hz
- 576i, 50Hz
- 720p, 50, 60Hz
- 1080i, 50, 60Hz
- 1080p, 50, 60Hz
-
-
Connectivity
- Video input
-
- HDMI 2.0 (x1)
- USB 2.0 ( x1)
- VGA (Analog D-Sub) (x1)
-
- Audio input
- 3.5 mm jack
- Video output
- HDMI 2.0 (x1)
- Audio output
- 3.5mm jack
- External control
-
- IR (in/out) 3.5 mm jack
- RJ45
- RS232C (in/out) 2.5 mm jack
-
-
Convenience
- Signal loop through
-
- RS232
- HDMI
- IR Loopthrough
-
- Network controllable
- LAN (RJ45)
-
Operating conditions
- Temperature range (operation)
- 0~ 40 °C
- Temperature range (storage)
- -20 ~ 60 °C
- Altitude
- 0 ~ 3000 m
- MTBF
- 50,000 hour(s)
- Humidity range (operation)[RH]
- 20 - 80% RH (No condensation)
- Humidity range (storage) [RH]
- 5 - 95% RH (No condensation)
-
Power
- Consumption (Typical)
- 70 W
- Consumption (Max)
- 85 W
- Standby power consumption
- <0.5W
- Mains power
- 100 ~ 240 VAC, 50 ~ 60 Hz
-
Accessories
- Included Accessories
-
- AC Switch Cover
- IR sensor cable (1.8 m) (x1)
- Philips logo (x1)
- Quick start guide (x1)
- Remote control & AAA batteries
- RS232 daisy chain cable
- AC power cord
- RS232 cable
- HDMI cable
- Wall mount bolt x2
-
-
Miscellaneous
- On-Screen Display Languages
-
- Arabic
- Dutch
- Danish
- English
- French
- Finnish
- German
- Italian
- Japanese
- Norwegian
- Polish
- Portuguese
- Russian
- Spanish
- Swedish
- Simplified Chinese
- Turkish
- Traditional Chinese
- Czech
-
- Regulatory approvals
-
- CE
- FCC, Class A
- CB
-
- Warranty
- 3 years warranty
-
Internal Player
- CPU
- 2 x A53 + 2 x A73
- GPU
- ARM Mali G51
- Memory
- 2GB DDR3
- Storage
- 8GB eMMC
-
Dimensions
- Set Width
- 928.5 mm
- Set Height
- 282.3 mm
- Set Depth
- 48.7 mm
- Bezel width
- 12.4mm(T/B); 10.5mm(R/L)
- Wall Mount
- 400mm x 200mm , M6
- Product weight
- 7.76 kg
