Philips Dynamic UNIQUE

Enabling better imaging outcomes



Low-dose settings are common in today’s fluoroscopic examinations. Unfortunately this leads to images with high quantum noise, adversely impacting your ability to reach a confident diagnosis. Dynamic UNIQUE’s real-time image processing capability is an innovative advantage found only in Philips radiography/fluoroscopy systems, including the ProxiDiagnost N90 and the CombiDiagnost R90.



With Dynamic UNIQUE, you’ll enable better imaging outcomes and improve your diagnostic confidence.

The clarity you seek



Dynamic UNIQUE delivers superb detail visibility with real-time de-noising, from the first frame to the last. Diagnostic information for each frame is displayed with great clarity, at the correct brightness, and with very low latency. Image representation is consistent and stable, even when the image content varies rapidly.



Dynamic UNIQUE supports fast and safe low-dose examinations by providing clarity of detail to improve your diagnostic confidence.

Dynamic UNIQUE image processing software harmonizes contrast. It also enhances faint details and creates uniform image quality, which enables us to clearly tell the difference between bones and soft tissue.

Dr. Paul Molitor, Radiologist Centre Hospitalier du Nord, Luxembourg

See Dynamic UNIQUE at work



Compare side-by-side with a conventional image processing and see the benefits for yourself.

Philips dynamic unique

Features



Dynamic UNIQUE features intelligent spatiotemporal noise suppression, temporal brightness stabilization, and real-time multiscale image enhancement, to permit high-quality image processing in real-time.

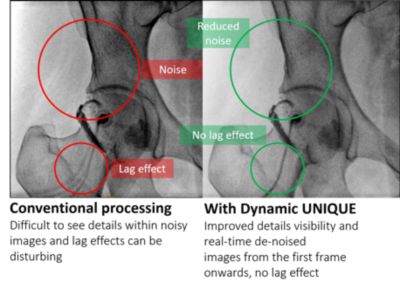

Temporal noise suppression


Dynamic UNIQUE’s inter-frame (temporal) noise suppression uses temporal averaging, which accumulates the dose of successive frames, to reduce noise in static anatomical structures. When movement is detected, temporal averaging is restrained and spatial noise suppression steps in.

Spatial noise suppression


In moving regions, Dynamic UNIQUE applies intra-frame (spatial) noise suppression. The strength of spatial noise suppression is adapted to the strength of temporal noise reduction. As a result, image noise level is kept consistently low over the entire image. There is no lag effect. There are no shadows and no artifacts of moving structures.

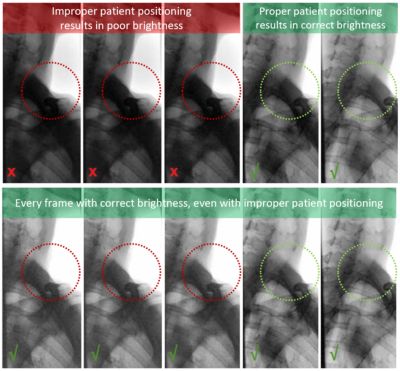

Brightness stabilization


Dynamic UNIQUE automatically determines the signal level in the anatomical region and maps it to an appropriate brightness level so you’ll experience comfortable live viewing with immediate brightness stabilization – from the first frame forward. This is less tiring to your eyes, as less time is needed to adapt to the luminosity.

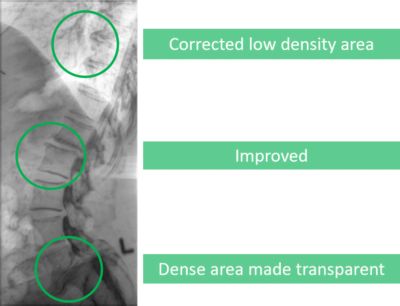

Multi-scale image enhancement


Dynamic UNIQUE delivers excellent detail with overall contrast harmonization – even in challenging viewing conditions. Each and every frame is fully processed in real-time and optimally enhanced. There are no enhancement artifacts. There is no image clipping. So you are less likely to miss important details*.


* On routine clinical image data with standard image processing settings

More clarity and confidence with Dynamic UNIQUE



In these documents, you’ll discover how Dynamic UNIQUE helps to meet  the challenges of modern fluoroscopy by combining robust, artifact-free,  easy-to-use multiscale image enhancement with intelligent noise  suppression, even at low dose levels.
