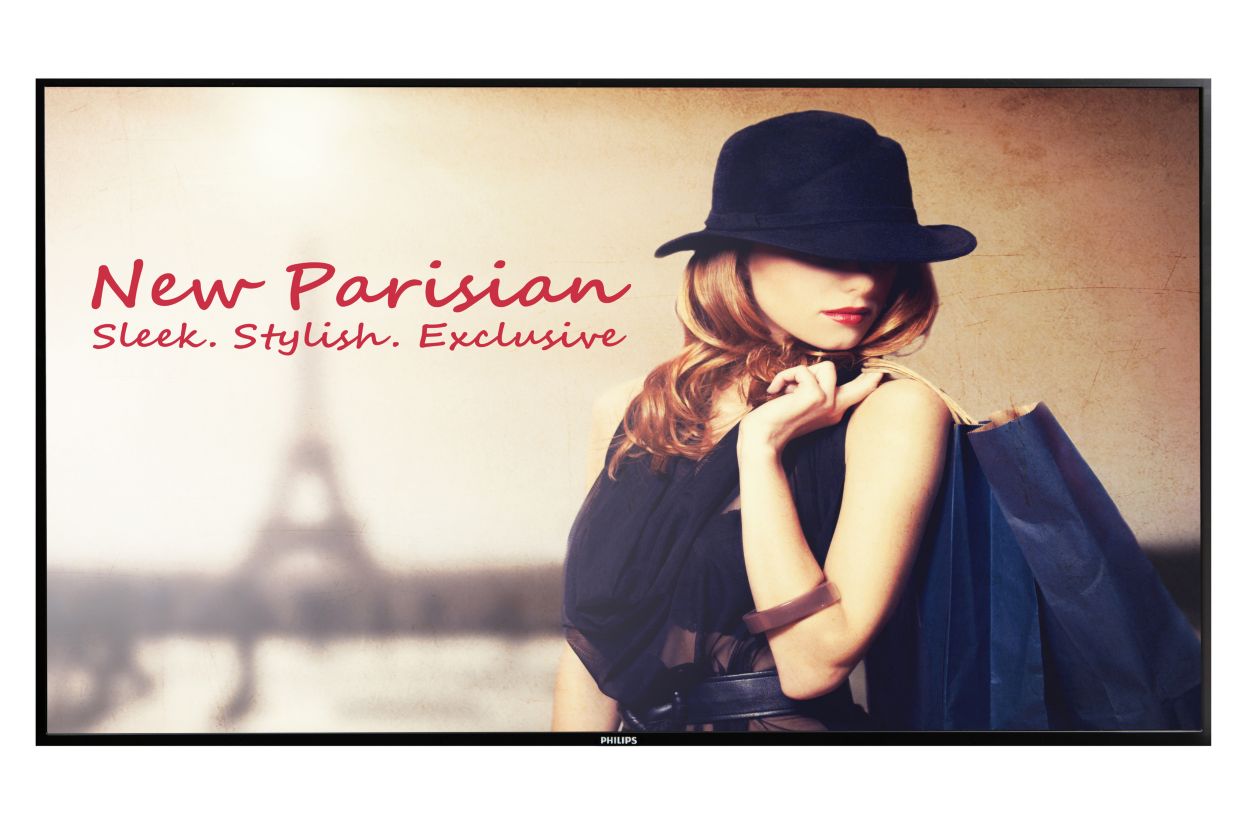

D-Line Display

86BDL4150D/00

Reviews Reviews

-{discount-value}

Images

D-Line Display

86BDL4150D/00

Reviews Reviews

Say more

Make it stand out with a fast D-Line professional 4K UHD display. Philips’ superb picture quality ensures true colours and intense contrast. You can effortlessly display content from multiple sources on a single screen. See all benefits

Unfortunately this product is no longer available

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

D-Line Display

Say more

Unfortunately this product is no longer available

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

D-Line Display

Say more

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

QuadViewer. Play four source signals on one screen.

Turn a single Philips Professional Display into a bezel-free 2x2 videowall. By connecting four independent sources, you can effortlessly play multiple channels at once. Simply tell the display which zone should play which content. Ideal for situations like broadcast control rooms, where feeds from multiple cameras need to be clearly visible.

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Integrated HTML5 browser. Play and control online content

Android 7. Dedicated Android processor

Control your Philips professional display via an internet connection. The integrated Android OS (SoC) lets you install web and native Android apps directly to the display. A built-in scheduler makes it easy to launch apps and content based on time of day, or user.

CMND & Deploy. Install and launch apps remotely

Quickly install and launch any app-even when you're off-site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the Philips Professional Display App Store. Simply scan the QR code, log in to the store, and click on the app you want to install. The app is automatically downloaded and launched.

Integrated mPCIe slot for optional 4G/LTE module

Easily connect 4G/LTE modules to your Philips professional display. The integrated mPCIe slot enables your display to communicate with other devices that share the same wireless connectivity. Invaluable if you're installing displays in locations such as banks or government buildings, where you cannot get onto the local network.

Proof of Play for Android content. Know what's playing

Be sure your Android-powered Philips Professional Display is showing the right content-even when you're not there. When playing content via the embedded media player, you can set up your display to take automatic screenshots at regular intervals. Screenshots are stored on the display's internal memory, and you can choose to receive them via email.

Technical Specifications

Picture/Display
Diagonal screen size (inch)

85.6 inch

Diagonal screen size (metric)

217.4 cm

Panel resolution

3840 x 2160

Optimum resolution

3840 x 2160 @60HZ

Brightness

500 cd/m²

Contrast ratio (typical)

1200:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

12 ms

Pixel pitch

0.4935 x 0.4935 mm

Display colors

1.07 Billion

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Progressive scan
Operating system

Android 7.1.2
Connectivity
Video input
- DVI-D
- VGA (Analog D-Sub)
- HDMI 2.0 (x3)
- DisplayPort (1.2)
Video output

DisplayPort 1.2 (x1)

Audio input

3.5 mm jack

Audio output
- SPDIF
- 3.5mm jack
- External speaker connection
Other connections
- OPS
- Micro USB (x1) (OTG)
- USB 2.0
- USB 3.0
- mPCIe
External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Supported Display Resolution
Computer formats
- 3840 x 2160, 60Hz
- 1920 x 1080, 60Hz
- 1600 x 1200, 60Hz
- 1360 x 768, 60Hz
- 1280 x 1024, 60Hz
- 1280 x 800, 60Hz
- 1280 x 768, 60Hz
- 1024 x 768, 60, 75Hz
- 640 x 480, 60, 72, 75Hz
- 720 x 400, 70Hz
- 800 x 600, 60, 75Hz
Video formats
- 2160p, 30,50, 60Hz
- 1080p, 50, 60Hz
- 1080i, 25, 30Hz
- 720p, 50, 60Hz
- 576i, 25, 50Hz
- 576p, 25, 50Hz
- 480i, 30, 60Hz
- 480p, 30, 60Hz
Dimensions

Set Width

1927.9 mm

Set Height

1098.9 mm

Set Depth

76.4 mm

Set Width (inch)

75.90 inch

Set Height (inch)

43.26 inch

Set Depth (inch)

3 inch

Bezel width

15.2 (T/L/R/B)

Product weight (lb)

140.65 lb

Product weight

63.8 kg

Wall Mount

600(H)x400(V) mm, M8

Smart Insert mount

100 x 200 mm
Convenience
Placement
- Landscape
- Portrait
Tiled Matrix

Up to 15 x 15

Keyboard control
- Hidden
- Lockable
Signal loop through
- IR Loopthrough
- DisplayPort
Network controllable
- RJ45
- RS232
Energy saving functions

Smart Power

Screen saving functions

Pixel Shift, Low Bright

Ease of installation

Smart Insert

Picture in picture

PIP
Power

Standby power consumption

<0.5 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (Typical)

262W +/- 10% W

Energy Label Class

G
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Relative humidity

20 %~ 80%(operation),10%-90%(storage) %

Altitude

0 ~ 3000 m

MTBF

50,000 hour(s)
Sound

Built-in speakers

2 x 10W RMS
Accessories
Included accessories
- Remote Control
- Batteries for remote control
- Quick start guide
- RS232 cable
- AC Power Cord
- HDMI cable
- IR sensor cable (1.8M)
Included Accessories
- RS232 daisy-chain cable
- SD card cover
Multimedia Applications
USB Playback Audio
- AAC
- M4A
- MP3
- WMA
USB Playback Picture
- BMP
- JPEG
- JPG
- PNG
USB Playback Video
- ASF
- AVI
- DAT
- FLV
- MKV
- MP4
- MPEG
- MPG
- TS
- VOB
- WEBM
- WMV
Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
Regulatory approvals
- CE
- FCC, Class B
- UL/cUL
- C-Tick
- RoHS
- GOST
- BSMI
- CB
Warranty

3 year warranty
Internal Player
CPU
- Dual-Core Cortex-A72 @2GHz
- Quad-Core Cortex-A53 @ 1.5GHz
GPU

ARM Mali-T864

Memory

4GB DDR3

Storage

64G eMMc

Wifi
- 2T2R
- 802.11 ac/a/b/g/n
- WCT07R2201

What's in the box?

Other items in the box

Remote Control
Batteries for remote control
Quick start guide
RS232 cable
AC Power Cord
HDMI cable
IR sensor cable (1.8M)
