Signage Solutions P-Line Display

65BDL3017P/00

Signage Solutions P-Line Display

65BDL3017P/00

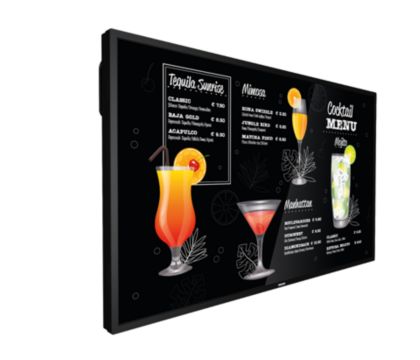

Power and flexibility

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.

Signage Solutions P-Line Display

Power and flexibility

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.

Power and flexibility

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.

Signage Solutions P-Line Display

Power and flexibility

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high-brightness make it perfect for demanding environments such as retail, transportation and food & beverage.

Similar products

See all P-Line series

Power and flexibility

Brighter content with 24/7 performance.

  • 65"
  • UHD Panel
  • 700cd/m²
D-image:clinically accurate imaging

D-image:clinically accurate imaging

This Philips Professional Display is factory-calibrated to meet clinical compliance standards for greyscale performance. The optimal image achieved by the display can be used to review medical images in consultation rooms or lecture theatres.

Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver ensures content is always playing

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

Sophistication and intelligence with SDM-L

An integrated Intel Smart Display Module Large adds scalable sophistication to your display, enabling quick and cost-effective upgrades when you need to add new features and functionality. Its thin design provides the same level of intelligence and interoperability as OPS, whilst keeping the display as sleek as possible.

Technical Specifications

  • Picture/Display

    Diagonal screen size (inch)
    65  inch
    Diagonal screen size (metric)
    164  cm
    Panel resolution
    3840 x 2160
    Optimum resolution
    3840 x 2160 @ 60Hz
    Brightness
    700  cd/m²
    Contrast ratio (typical)
    1200:1
    Dynamic contrast ratio
    500,000:1
    Aspect ratio
    16:9
    Response time (typical)
    8  ms
    Pixel pitch
    0.372 x 0.372 mm
    Display colors
    1.07 billion
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Haze
    25 %
    Panel technology
    VA
  • Connectivity

    Video input
    • Display Port1.2 (x1)
    • HDMI 2.0 (x2)
    • DVI-I (x 1)
    • USB 2.0 ( x1)
    Video output
    • DisplayPort 1.2 (x1)
    • HDMI 2.0 (x1)
    Audio input
    3.5 mm jack
    Audio output
    3.5mm jack
    Other connections
    • SDM-L
    • Micro SD (x1)
    External control
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
  • Supported Display Resolution

    Computer formats
    • 1280 x 1024, 60Hz
    • 1920 x 1080, 60Hz
    • 1280 x 800, 60Hz
    • 1600 x 1200, 60Hz
    • 640 x 480, 60, 67, 72, 75Hz
    • 720 x 400, 70Hz
    • 1024 x 768, 60, 70, 75Hz
    • 1152 x 864, 75Hz
    • 1152 x 870, 75Hz
    • 1280 x 720, 60Hz
    • 1440 x 900, 60Hz
    • 1680 x 1050, 60Hz
    • 800 x 600, 56, 60, 72, 75Hz
    Video formats
    • 1080p, 50, 60Hz
    • 720p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 3840 x 2160, 30Hz
    • 3840 x 2160, 60Hz
    • 480p, 60Hz
    • 576p, 50Hz
  • Dimensions

    Set Width
    1462.3  mm
    Set Height
    837.3  mm
    Set Depth
    89.9  mm
    Set Width (inch)
    57.71  inch
    Set Height (inch)
    32.96  inch
    Set Depth (inch)
    3.54  inch
    Bezel width
    14.90 mm (Even bezel)
    Product weight (lb)
    61.3  lb
    Product weight
    27.8  kg
    VESA Mount
    400 x 400 mm, M6
  • Convenience

    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Tiled Matrix
    Up to 15 x 15
    Keyboard control
    • Hidden
    • Lockable
    Signal loop through
    • IR Loopthrough
    • DisplayPort
    • RS232
    • HDMI
    Network controllable
    • RJ45
    • RS232
    Energy saving functions
    Smart Power
    Screen saving functions
    Pixel Shift, Low Bright
    Ease of installation
    • Carrying Handles
    • Smart Insert
  • Power

    Standby power consumption
    <0.5 W
    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (Typical)
    155  W
    Consumption (Max)
    330 W
    Energy Label Class
    G
  • Operating conditions

    Temperature range (operation)
    0 ~ 40  °C
    Temperature range (storage)
    -20 ~ 60  °C
    Altitude
    0 ~ 3000 m
    MTBF
    60,000  hour(s)
    Humidity range (operation)[RH]
    20 ~ 80% RH (No condensation)
    Humidity range (storage) [RH]
    5 ~ 95% RH (No condensation)
  • Sound

    Built-in speakers
    2 x 10W RMS
  • Accessories

    Included Accessories
    • Philips logo (x1)
    • AC Switch Cover
    • Edge Alignment Kit (1) -1 pcs
    • Edge Alignment Kit (2) - 2 pcs
    • IR sensor cable (1.8 m) (x1)
    • Power cable (x3)
    • Quick start guide (x1)
    • Remote control & AAA batteries
    • RS232 cable (3 m) (x1)
    • RS232 daisy chain cable (x1)
    • USB Cover (x1)
    • Wire Clamper (x3)
  • Multimedia Applications

    USB Playback Audio
    • AAC
    • HEAAC
    • MPEG
    USB Playback Picture
    • BMP
    • JPEG
    • PNG
    USB Playback Video
    • H.264
    • Motion JPEG
    • MPEG1/2
    • WMV3
  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Spanish
    • Polish
    • Turkish
    • Russian
    • Italian
    • Simplified Chinese
    • Traditional Chinese
    • Arabic
    • Japanese
    • Danish
    • Dutch
    • Finnish
    • Norwegian
    • Portuguese
    • Swedish
    Regulatory approvals
    • CE
    • CCC
    • BSMI
    • CB
    • VCCI
    • CECP
    • EAC
    • PSB
    • EMF
    • EnergyStar 8.0
    • ETL
    • FCC, Class A
    Warranty
    3 year warranty
